Your Video Everywhere with Q-SYS NVM Series

In our last conversation, we explored how the Q-SYS RoomSuite Modular System is reshaping the way medium and large collaboration rooms are deployed at scale. But collaboration spaces are only one part of the bigger picture. Step onto a casino floor, a hotel lobby, a stadium concourse, government facilities, or a corporate all-hands space, and you will notice something else: displays are everywhere.

Video has become a foundational layer of how organizations communicate, entertain, inform, and engage, and the pressure on AV teams to deliver consistent, high-quality video across hundreds of endpoints has never been greater.

The Q-SYS Full Stack AV Platform was built to meet this challenge holistically, combining audio, video, and control in a single, cloud-manageable platform. With the introduction of the Q-SYS NVM Series, the Q-SYS platform now natively delivers network video purpose-built for large-scale deployments in a broader range of spaces. NVM Series also introduces a new deployment paradigm that significantly reduces design complexity and accelerates deployment of large-scale video systems.

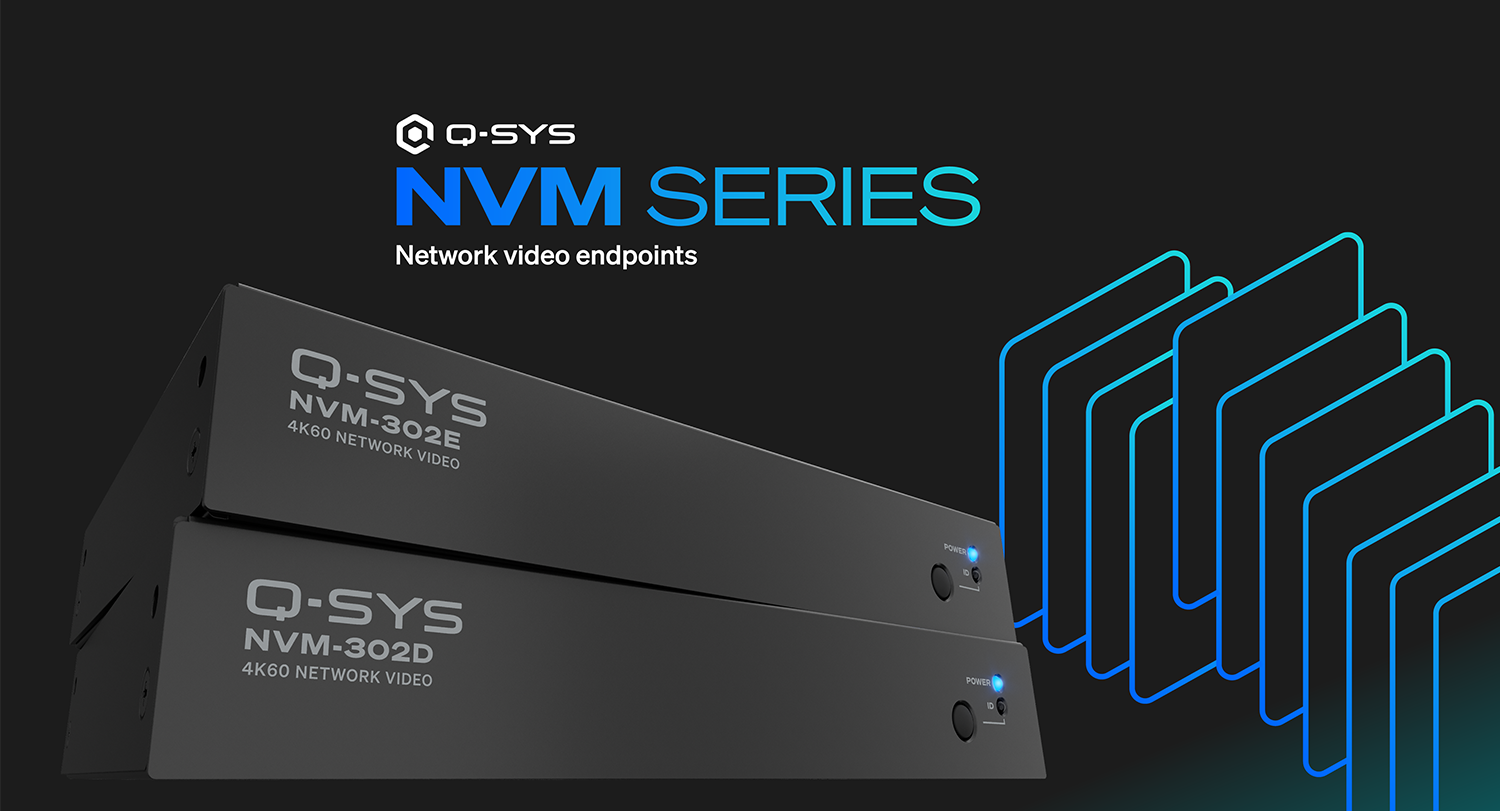

Introducing the Q-SYS NVM Series

High-quality, low-bandwidth network video, purpose-built for scale.

Q-SYS NVM Series network video endpoints expand the existing video capabilities of Q-SYS systems to deliver high-quality, low-bandwidth network video across hospitality, entertainment, collaboration, government, and more. NVM Series leverages Mediacast, a network-efficient AV transport paradigm built around an industry-standard codec designed for scalability: many sources, many destinations, and a network that needs to support both video and the rest of the business.

Purpose-Built Endpoints

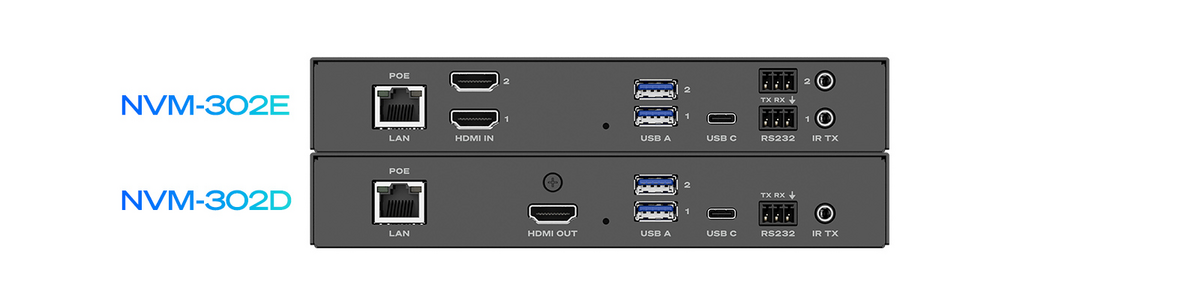

NVM Series is anchored by two endpoint models that pair encoder or decoder hardware with video software:

• The NVM-302E encoder includes a pre-installed, single-encode streaming video app (NVM-E1).

• The NVM-E2 Bundle includes the NVM-302E encoder and an expansion license that enables the dual-encode streaming video app (NVM-E2). This license can be applied via Q-SYS Core Manager or Q-SYS Reflect.

• NVM-302D decoder: Includes a pre-installed, single-decode streaming video app (NVM-D1).

These endpoints feature HDMI I/O which supports resolutions up to 4K60 4:4:4. They also feature onboard IR and RS232 for third-party device control and USB-C which will allow for AV bridging in a future firmware release. With low-density I/O and network-efficient video transport, NVM Series let integrators scale cost-effectively.

Design Natively. Deploy Faster.

A no-code design experience built into Q-SYS Designer Software.

NVM Designer is a uniquely intuitive software configuration tool within Q-SYS Designer Software™ that enables system designers to configure and deploy hundreds of endpoints in minutes, with no separate video matrix or management appliance required. Additionally, NVM Manager is a tool that lets you manage your entire NVM deployment during runtime. For integrators and members of Edge, this means a single workflow for DSP and control programming, AV routing and UCI design.

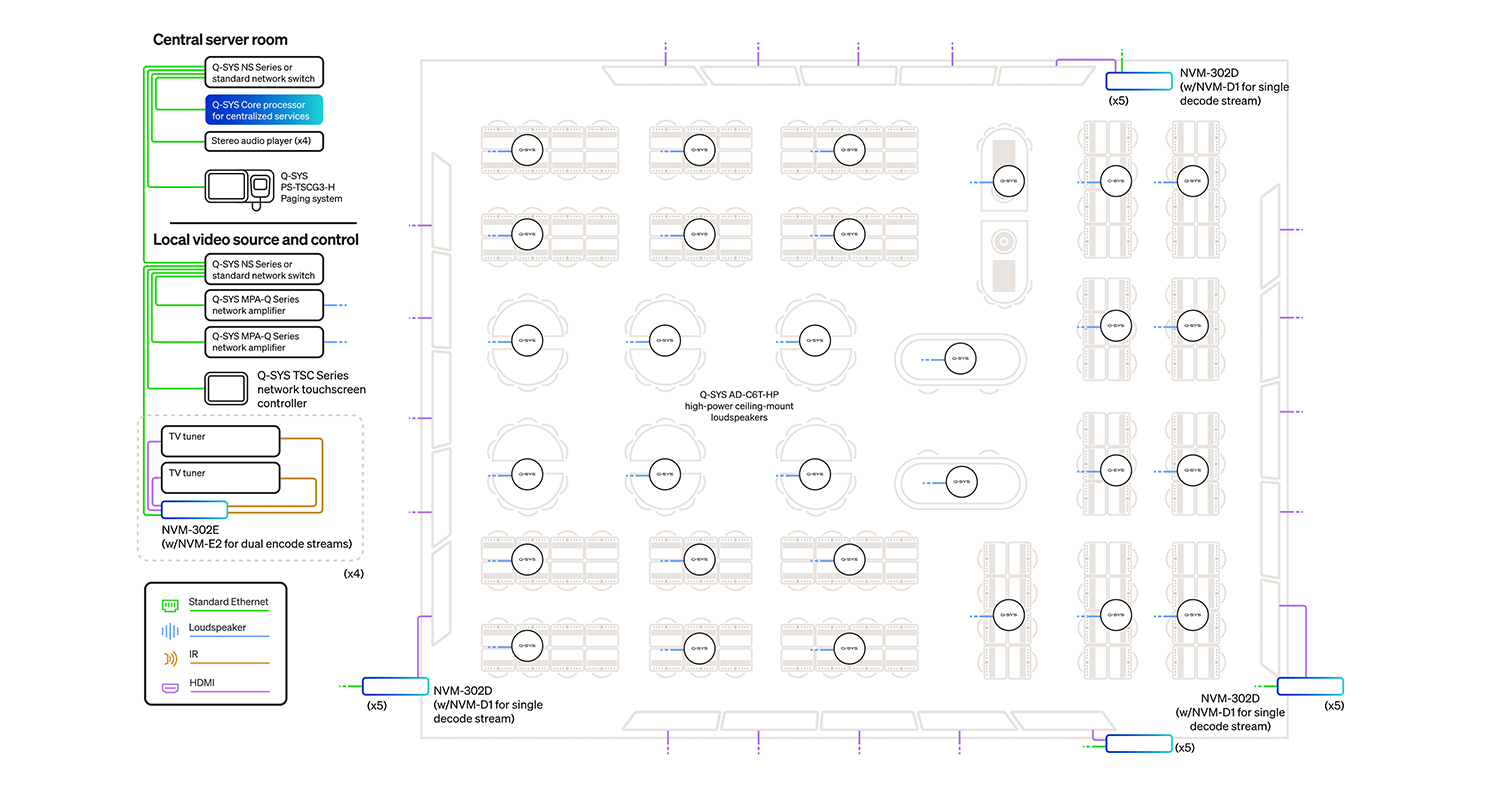

A Real-World Example: The Casino Floor

Consider a typical casino. There are a lot of displays that need to show content from a number of sources. The NVM-302E can simultaneously encode two 4K30 4:4:4 Mediacast streams to the network and each display connects to the NVM-302D, which delivers a single HDMI decode stream. Core handles venue-wide AV routing, control processing, DSP processing.

Q-SYS MPA-Q Series network amplifiers drive AD-C6T-HP high-power ceiling loudspeakers for background music and announcements, while a Q-SYS TSC Series touchscreen provides local source selection and control.

A central Q-SYS Core processor handles system-wide logic and centralized services, and a Q-SYS PS-TSCG3-H paging system delivers site-wide announcements. Audio, video, and control designed in one software tool, driven by a full stack AV platform.

Why Q-SYS NVM Series Matters

For Edge members and the customers they serve, NVM Series brings the proven advantages of the Q-SYS Platform to every space where video is part of the experience. NVM Series is:

•       Scalable, with low-density, cost-effective endpoints designed for large rollouts.

•       Native, designed and deployed entirely within Q-SYS Designer Software.

•       Network-efficient, thanks to Mediacast and standard-codec transport.

•       One Platform, NVM Series is driven by the Q-SYS Full Stack AV Platform, which offers fully-integrated, cloud-manageable audio, video and control.

From standardized collaboration rooms to casino floors, lobbies and beyond, Q-SYS continues to give integrators one platform for an expanding range of spaces, and one experience their customers can rely on.

Jason Baez, Director of Sales, Q-SYS Central Region

Baez brings 15 years of AV industry experience, including seven years at Q‑SYS, where he has supported customer transitions to the Q‑SYS Platform and led channel sales initiatives. He now oversees sales across the Central Region and manages the company’s partnership with The Edge Group.

Outside of work, Jason enjoys time with his wife and three young daughters, squeezes in golf whenever he can, and recently began his MBA studies at the University of Illinois.
